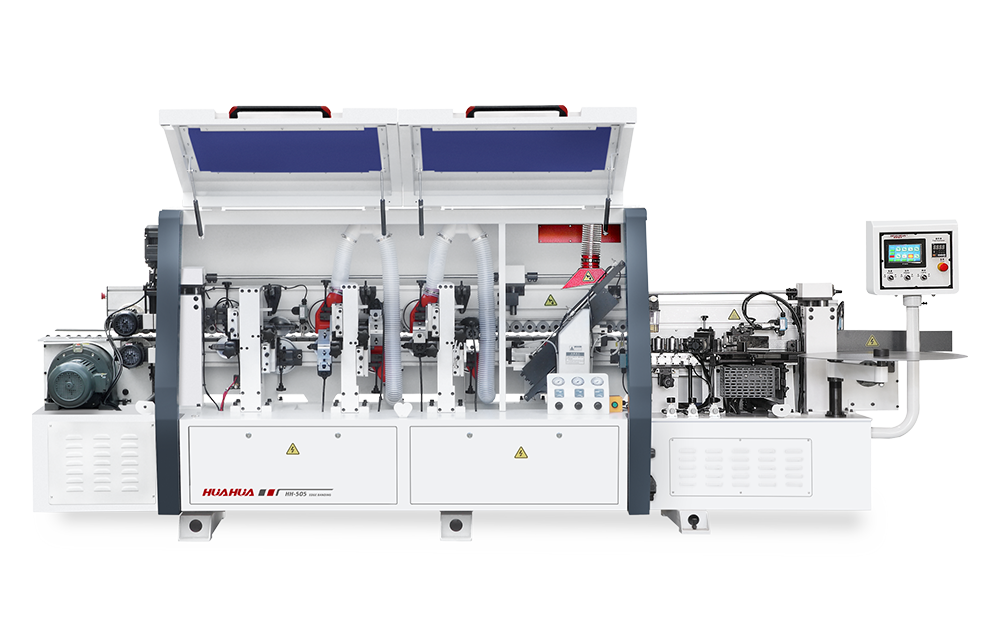

HH-505 CNC Wood Edge Banding Machine

HH-505

1.overall size：4500*1000*1700mm 2.total power：10.7kw 3.rough trimming

HH-505

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Play

array(323) { ["title_list"]=> array(2) { [0]=> array(3) { ["title"]=> string(8) "Features" ["_id"]=> string(7) "335fc72" ["icon"]=> array(2) { ["value"]=> string(12) "fas fa-crown" ["library"]=> string(8) "fa-solid" } } [1]=> array(3) { ["title"]=> string(14) "Specifications" ["_id"]=> string(7) "04c0914" ["icon"]=> array(2) { ["value"]=> string(12) "fas fa-crown" ["library"]=> string(8) "fa-solid" } } } ["style_container_background_background"]=> string(7) "classic" ["style_normal_margin"]=> array(6) { ["unit"]=> string(2) "px" ["top"]=> string(1) "0" ["right"]=> string(2) "14" ["bottom"]=> string(2) "14" ["left"]=> string(2) "14" ["isLinked"]=> bool(false) } ["style_normal_padding"]=> array(6) { ["unit"]=> string(2) "px" ["top"]=> string(2) "12" ["right"]=> string(2) "30" ["bottom"]=> string(2) "12" ["left"]=> string(2) "30" ["isLinked"]=> bool(false) } ["style_normal_background_background"]=> string(7) "classic" ["pp_display_conditions"]=> NULL ["__globals__"]=> array(10) { ["style_container_background_color"]=> string(0) "" ["style_normal_color"]=> string(25) "globals/colors?id=f429b51" ["style_normal_background_color"]=> string(0) "" ["style_normal_border_color"]=> string(25) "globals/colors?id=91e81e6" ["style_hover_background_color"]=> string(25) "globals/colors?id=dbeee6d" ["style_hover_color"]=> string(25) "globals/colors?id=b53c2c4" ["style_active_color"]=> string(25) "globals/colors?id=b53c2c4" ["style_active_background_color"]=> string(25) "globals/colors?id=dbeee6d" ["style_active_border_color"]=> string(25) "globals/colors?id=dbeee6d" ["style_hover_border_color"]=> string(25) "globals/colors?id=dbeee6d" } ["style_normal_border_radius"]=> array(6) { ["unit"]=> string(2) "px" ["top"]=> string(3) "200" ["right"]=> string(3) "200" ["bottom"]=> string(3) "200" ["left"]=> string(3) "200" ["isLinked"]=> bool(true) } ["style_normal_border_border"]=> string(5) "solid" ["style_normal_border_width"]=> array(6) { ["unit"]=> string(2) "px" ["top"]=> string(1) "1" ["right"]=> string(1) "1" ["bottom"]=> string(1) "1" ["left"]=> string(1) "1" ["isLinked"]=> bool(true) } ["style_hover_background_background"]=> string(7) "classic" ["style_hover_border_border"]=> string(5) "solid" ["style_hover_border_width"]=> array(6) { ["unit"]=> string(2) "px" ["top"]=> string(1) "1" ["right"]=> string(1) "1" ["bottom"]=> string(1) "1" ["left"]=> string(1) "1" ["isLinked"]=> bool(true) } ["style_active_background_background"]=> string(7) "classic" ["style_active_border_border"]=> string(5) "solid" ["style_active_border_width"]=> array(6) { ["unit"]=> string(2) "px" ["top"]=> string(1) "1" ["right"]=> string(1) "1" ["bottom"]=> string(1) "1" ["left"]=> string(1) "1" ["isLinked"]=> bool(true) } ["style_tab_icon_spacing"]=> array(3) { ["unit"]=> string(2) "px" ["size"]=> int(15) ["sizes"]=> array(0) { } } ["style_normal_color"]=> string(7) "#231815" ["style_normal_background_color"]=> string(9) "#FFFFFF00" ["style_normal_border_color"]=> string(7) "#DEDEDE" ["style_hover_color"]=> string(7) "#FFFFFF" ["style_hover_background_color"]=> string(7) "#B60005" ["style_hover_border_color"]=> string(7) "#B60005" ["style_active_color"]=> string(7) "#FFFFFF" ["style_active_background_color"]=> string(7) "#B60005" ["style_active_border_color"]=> string(7) "#B60005" ["_margin"]=> array(6) { ["unit"]=> string(2) "px" ["top"]=> string(2) "80" ["right"]=> string(1) "0" ["bottom"]=> string(1) "0" ["left"]=> string(1) "0" ["isLinked"]=> bool(false) } ["hide_desktop"]=> string(14) "hidden-desktop" ["hide_tablet"]=> string(13) "hidden-tablet" ["hide_mobile"]=> string(13) "hidden-mobile" ["style_container_direction"]=> string(7) "horizon" ["style_container_align"]=> string(6) "center" ["style_container_background_color"]=> string(0) "" ["style_container_background_color_b"]=> NULL ["style_container_background_image"]=> array(3) { ["url"]=> string(0) "" ["id"]=> string(0) "" ["size"]=> string(0) "" } ["style_container_background_video_link"]=> NULL ["style_container_background_video_start"]=> NULL ["style_container_background_video_end"]=> NULL ["style_container_background_play_once"]=> NULL ["style_container_background_play_on_mobile"]=> NULL ["style_container_background_privacy_mode"]=> NULL ["style_container_background_slideshow_gallery"]=> NULL ["style_container_background_slideshow_loop"]=> NULL ["style_container_background_slideshow_slide_duration"]=> NULL ["style_container_background_slideshow_slide_transition"]=> NULL ["style_container_background_slideshow_transition_duration"]=> NULL ["style_container_background_slideshow_lazyload"]=> NULL ["style_container_background_slideshow_ken_burns"]=> NULL ["style_container_background_slideshow_ken_burns_zoom_direction"]=> NULL ["style_normal_background_color_b"]=> NULL ["style_normal_background_image"]=> array(3) { ["url"]=> string(0) "" ["id"]=> string(0) "" ["size"]=> string(0) "" } ["style_normal_background_video_link"]=> NULL ["style_normal_background_video_start"]=> NULL ["style_normal_background_video_end"]=> NULL ["style_normal_background_play_once"]=> NULL ["style_normal_background_play_on_mobile"]=> NULL ["style_normal_background_privacy_mode"]=> NULL ["style_normal_background_slideshow_gallery"]=> NULL ["style_normal_background_slideshow_loop"]=> NULL ["style_normal_background_slideshow_slide_duration"]=> NULL ["style_normal_background_slideshow_slide_transition"]=> NULL ["style_normal_background_slideshow_transition_duration"]=> NULL ["style_normal_background_slideshow_lazyload"]=> NULL ["style_normal_background_slideshow_ken_burns"]=> NULL ["style_normal_background_slideshow_ken_burns_zoom_direction"]=> NULL ["style_hover_background_color_b"]=> NULL ["style_hover_background_image"]=> array(3) { ["url"]=> string(0) "" ["id"]=> string(0) "" ["size"]=> string(0) "" } ["style_hover_background_video_link"]=> NULL ["style_hover_background_video_start"]=> NULL ["style_hover_background_video_end"]=> NULL ["style_hover_background_play_once"]=> NULL ["style_hover_background_play_on_mobile"]=> NULL ["style_hover_background_privacy_mode"]=> NULL ["style_hover_background_slideshow_gallery"]=> NULL ["style_hover_background_slideshow_loop"]=> NULL ["style_hover_background_slideshow_slide_duration"]=> NULL ["style_hover_background_slideshow_slide_transition"]=> NULL ["style_hover_background_slideshow_transition_duration"]=> NULL ["style_hover_background_slideshow_lazyload"]=> NULL ["style_hover_background_slideshow_ken_burns"]=> NULL ["style_hover_background_slideshow_ken_burns_zoom_direction"]=> NULL ["style_active_background_color_b"]=> NULL ["style_active_background_image"]=> array(3) { ["url"]=> string(0) "" ["id"]=> string(0) "" ["size"]=> string(0) "" } ["style_active_background_video_link"]=> NULL ["style_active_background_video_start"]=> NULL ["style_active_background_video_end"]=> NULL ["style_active_background_play_once"]=> NULL ["style_active_background_play_on_mobile"]=> NULL ["style_active_background_privacy_mode"]=> NULL ["style_active_background_slideshow_gallery"]=> NULL ["style_active_background_slideshow_loop"]=> NULL ["style_active_background_slideshow_slide_duration"]=> NULL ["style_active_background_slideshow_slide_transition"]=> NULL ["style_active_background_slideshow_transition_duration"]=> NULL ["style_active_background_slideshow_lazyload"]=> NULL ["style_active_background_slideshow_ken_burns"]=> NULL ["style_active_background_slideshow_ken_burns_zoom_direction"]=> NULL ["_title"]=> string(0) "" ["_element_width"]=> string(0) "" ["_element_width_tablet"]=> string(0) "" ["_element_width_mobile"]=> string(0) "" ["_position"]=> string(0) "" ["_element_id"]=> string(0) "" ["_css_classes"]=> string(0) "" ["e_display_conditions"]=> string(0) "" ["_element_cache"]=> string(0) "" ["pp_display_conditions_enable"]=> string(0) "" ["pp_display_conditions_output"]=> NULL ["pp_display_conditions_relation"]=> NULL ["pp_wrapper_link_enable"]=> string(0) "" ["pp_wrapper_link"]=> NULL ["pp_custom_cursor_enable"]=> string(0) "" ["pp_custom_cursor_target"]=> NULL ["pp_custom_cursor_css_selector"]=> NULL ["pp_custom_cursor_type"]=> NULL ["pp_custom_cursor_icon"]=> NULL ["pp_custom_cursor_text"]=> NULL ["pp_custom_cursor_left_offset"]=> NULL ["pp_custom_cursor_top_offset"]=> NULL ["pp_custom_cursor_text_bg_color"]=> NULL ["pp_custom_cursor_text_bg_color_b"]=> NULL ["pp_custom_cursor_text_bg_video_link"]=> NULL ["pp_custom_cursor_text_bg_video_start"]=> NULL ["pp_custom_cursor_text_bg_video_end"]=> NULL ["pp_custom_cursor_text_bg_play_once"]=> NULL ["pp_custom_cursor_text_bg_play_on_mobile"]=> NULL ["pp_custom_cursor_text_bg_privacy_mode"]=> NULL ["pp_custom_cursor_text_bg_slideshow_gallery"]=> NULL ["pp_custom_cursor_text_bg_slideshow_loop"]=> NULL ["pp_custom_cursor_text_bg_slideshow_slide_duration"]=> NULL ["pp_custom_cursor_text_bg_slideshow_slide_transition"]=> NULL ["pp_custom_cursor_text_bg_slideshow_transition_duration"]=> NULL ["pp_custom_cursor_text_bg_slideshow_lazyload"]=> NULL ["pp_custom_cursor_text_bg_slideshow_ken_burns"]=> NULL ["pp_custom_cursor_text_bg_slideshow_ken_burns_zoom_direction"]=> NULL ["pp_elements_tooltip_enable"]=> string(0) "" ["pp_elements_tooltip_content"]=> NULL ["pp_elements_tooltip_target"]=> NULL ["pp_elements_tooltip_selector"]=> NULL ["pp_elements_tooltip_trigger"]=> NULL ["pp_elements_tooltip_auto_hide"]=> NULL ["pp_elements_tooltip_show_once"]=> NULL ["pp_elements_tooltip_viewport_threshold"]=> NULL ["pp_elements_tooltip_position"]=> NULL ["pp_elements_tooltip_arrow"]=> NULL ["pp_elements_tooltip_animation"]=> NULL ["pp_elements_tooltip_distance"]=> NULL ["pp_elements_tooltip_zindex"]=> NULL ["pp_elements_tooltip_width"]=> NULL ["motion_fx_motion_fx_scrolling"]=> string(0) "" ["motion_fx_translateY_effect"]=> NULL ["motion_fx_translateY_direction"]=> NULL ["motion_fx_translateY_speed"]=> NULL ["motion_fx_translateY_affectedRange"]=> NULL ["motion_fx_translateX_effect"]=> NULL ["motion_fx_translateX_direction"]=> NULL ["motion_fx_translateX_speed"]=> NULL ["motion_fx_translateX_affectedRange"]=> NULL ["motion_fx_opacity_effect"]=> NULL ["motion_fx_opacity_direction"]=> NULL ["motion_fx_opacity_level"]=> NULL ["motion_fx_opacity_range"]=> NULL ["motion_fx_blur_effect"]=> NULL ["motion_fx_blur_direction"]=> NULL ["motion_fx_blur_level"]=> NULL ["motion_fx_blur_range"]=> NULL ["motion_fx_rotateZ_effect"]=> NULL ["motion_fx_rotateZ_direction"]=> NULL ["motion_fx_rotateZ_speed"]=> NULL ["motion_fx_rotateZ_affectedRange"]=> NULL ["motion_fx_scale_effect"]=> NULL ["motion_fx_scale_direction"]=> NULL ["motion_fx_scale_speed"]=> NULL ["motion_fx_scale_range"]=> NULL ["motion_fx_devices"]=> NULL ["motion_fx_range"]=> NULL ["motion_fx_motion_fx_mouse"]=> string(0) "" ["motion_fx_mouseTrack_effect"]=> NULL ["motion_fx_mouseTrack_direction"]=> NULL ["motion_fx_mouseTrack_speed"]=> NULL ["motion_fx_tilt_effect"]=> NULL ["motion_fx_tilt_direction"]=> NULL ["motion_fx_tilt_speed"]=> NULL ["handle_motion_fx_asset_loading"]=> string(0) "" ["sticky"]=> string(0) "" ["sticky_on"]=> NULL ["sticky_offset"]=> NULL ["sticky_offset_tablet"]=> NULL ["sticky_offset_mobile"]=> NULL ["sticky_effects_offset"]=> NULL ["sticky_effects_offset_tablet"]=> NULL ["sticky_effects_offset_mobile"]=> NULL ["sticky_anchor_link_offset"]=> NULL ["sticky_anchor_link_offset_tablet"]=> NULL ["sticky_anchor_link_offset_mobile"]=> NULL ["sticky_parent"]=> NULL ["_animation"]=> string(0) "" ["_animation_tablet"]=> string(0) "" ["_animation_mobile"]=> string(0) "" ["animation_duration"]=> NULL ["_animation_delay"]=> NULL ["_transform_rotate_popover"]=> string(0) "" ["_transform_rotateZ_effect"]=> NULL ["_transform_rotateZ_effect_tablet"]=> NULL ["_transform_rotateZ_effect_mobile"]=> NULL ["_transform_rotate_3d"]=> NULL ["_transform_rotateX_effect"]=> NULL ["_transform_rotateX_effect_tablet"]=> NULL ["_transform_rotateX_effect_mobile"]=> NULL ["_transform_rotateY_effect"]=> NULL ["_transform_rotateY_effect_tablet"]=> NULL ["_transform_rotateY_effect_mobile"]=> NULL ["_transform_perspective_effect"]=> NULL ["_transform_perspective_effect_tablet"]=> NULL ["_transform_perspective_effect_mobile"]=> NULL ["_transform_translate_popover"]=> string(0) "" ["_transform_translateX_effect"]=> NULL ["_transform_translateX_effect_tablet"]=> NULL ["_transform_translateX_effect_mobile"]=> NULL ["_transform_translateY_effect"]=> NULL ["_transform_translateY_effect_tablet"]=> NULL ["_transform_translateY_effect_mobile"]=> NULL ["_transform_scale_popover"]=> string(0) "" ["_transform_keep_proportions"]=> string(3) "yes" ["_transform_scale_effect"]=> NULL ["_transform_scale_effect_tablet"]=> NULL ["_transform_scale_effect_mobile"]=> NULL ["_transform_scaleX_effect"]=> NULL ["_transform_scaleX_effect_tablet"]=> NULL ["_transform_scaleX_effect_mobile"]=> NULL ["_transform_scaleY_effect"]=> NULL ["_transform_scaleY_effect_tablet"]=> NULL ["_transform_scaleY_effect_mobile"]=> NULL ["_transform_skew_popover"]=> string(0) "" ["_transform_skewX_effect"]=> NULL ["_transform_skewX_effect_tablet"]=> NULL ["_transform_skewX_effect_mobile"]=> NULL ["_transform_skewY_effect"]=> NULL ["_transform_skewY_effect_tablet"]=> NULL ["_transform_skewY_effect_mobile"]=> NULL ["_transform_flipX_effect"]=> string(0) "" ["_transform_flipY_effect"]=> string(0) "" ["_transform_rotate_popover_hover"]=> string(0) "" ["_transform_rotateZ_effect_hover"]=> NULL ["_transform_rotateZ_effect_hover_tablet"]=> NULL ["_transform_rotateZ_effect_hover_mobile"]=> NULL ["_transform_rotate_3d_hover"]=> NULL ["_transform_rotateX_effect_hover"]=> NULL ["_transform_rotateX_effect_hover_tablet"]=> NULL ["_transform_rotateX_effect_hover_mobile"]=> NULL ["_transform_rotateY_effect_hover"]=> NULL ["_transform_rotateY_effect_hover_tablet"]=> NULL ["_transform_rotateY_effect_hover_mobile"]=> NULL ["_transform_perspective_effect_hover"]=> NULL ["_transform_perspective_effect_hover_tablet"]=> NULL ["_transform_perspective_effect_hover_mobile"]=> NULL ["_transform_translate_popover_hover"]=> string(0) "" ["_transform_translateX_effect_hover"]=> NULL ["_transform_translateX_effect_hover_tablet"]=> NULL ["_transform_translateX_effect_hover_mobile"]=> NULL ["_transform_translateY_effect_hover"]=> NULL ["_transform_translateY_effect_hover_tablet"]=> NULL ["_transform_translateY_effect_hover_mobile"]=> NULL ["_transform_scale_popover_hover"]=> string(0) "" ["_transform_keep_proportions_hover"]=> string(3) "yes" ["_transform_scale_effect_hover"]=> NULL ["_transform_scale_effect_hover_tablet"]=> NULL ["_transform_scale_effect_hover_mobile"]=> NULL ["_transform_scaleX_effect_hover"]=> NULL ["_transform_scaleX_effect_hover_tablet"]=> NULL ["_transform_scaleX_effect_hover_mobile"]=> NULL ["_transform_scaleY_effect_hover"]=> NULL ["_transform_scaleY_effect_hover_tablet"]=> NULL ["_transform_scaleY_effect_hover_mobile"]=> NULL ["_transform_skew_popover_hover"]=> string(0) "" ["_transform_skewX_effect_hover"]=> NULL ["_transform_skewX_effect_hover_tablet"]=> NULL ["_transform_skewX_effect_hover_mobile"]=> NULL ["_transform_skewY_effect_hover"]=> NULL ["_transform_skewY_effect_hover_tablet"]=> NULL ["_transform_skewY_effect_hover_mobile"]=> NULL ["_transform_flipX_effect_hover"]=> string(0) "" ["_transform_flipY_effect_hover"]=> string(0) "" ["_background_color"]=> NULL ["_background_color_b"]=> NULL ["_background_image"]=> NULL ["_background_image_tablet"]=> NULL ["_background_image_mobile"]=> NULL ["_background_video_link"]=> NULL ["_background_video_start"]=> NULL ["_background_video_end"]=> NULL ["_background_play_once"]=> NULL ["_background_play_on_mobile"]=> NULL ["_background_privacy_mode"]=> NULL ["_background_slideshow_gallery"]=> NULL ["_background_slideshow_loop"]=> NULL ["_background_slideshow_slide_duration"]=> NULL ["_background_slideshow_slide_transition"]=> NULL ["_background_slideshow_transition_duration"]=> NULL ["_background_slideshow_lazyload"]=> NULL ["_background_slideshow_ken_burns"]=> NULL ["_background_slideshow_ken_burns_zoom_direction"]=> NULL ["_background_hover_color"]=> NULL ["_background_hover_color_b"]=> NULL ["_background_hover_image"]=> NULL ["_background_hover_image_tablet"]=> NULL ["_background_hover_image_mobile"]=> NULL ["_background_hover_video_link"]=> NULL ["_background_hover_video_start"]=> NULL ["_background_hover_video_end"]=> NULL ["_background_hover_play_once"]=> NULL ["_background_hover_play_on_mobile"]=> NULL ["_background_hover_privacy_mode"]=> NULL ["_background_hover_slideshow_gallery"]=> NULL ["_background_hover_slideshow_loop"]=> NULL ["_background_hover_slideshow_slide_duration"]=> NULL ["_background_hover_slideshow_slide_transition"]=> NULL ["_background_hover_slideshow_transition_duration"]=> NULL ["_background_hover_slideshow_lazyload"]=> NULL ["_background_hover_slideshow_ken_burns"]=> NULL ["_background_hover_slideshow_ken_burns_zoom_direction"]=> NULL ["_mask_switch"]=> string(0) "" ["_attributes"]=> string(0) "" }

Features
Specifications

Functions

Glue Unit

Short time to Reach Operating Temperature. the Tool Free Quick Change System Guarantees Quick Cleaning and Change over Times when Changing the Glue or Colour. the Synchronised, Fine Adjustable Glue Roller Ensures the Right Application Amount Of Glue.

End Cutting Unit

Through the precise linear guide rail movement, the automatic tracking of the profile and the fast cutting structure of the high-frequency high-speed motor are used to trim the protruding edge banding strips at the front end of the plate and the protruding edge banding strips at the rear end of the plate.
Make it flush with the front and back ends of the sheet to ensure that the cut surface is flat and smooth.

Rough & Fine Trimming System

Use The large and small discs to automatically track the high-frequency and high-speed motor structure, trim the edge banding strips bonded on the upper and lower sides of the plate, and remove the excess edge banding material on the upper and lower sides of the processed plate edge banding strips, so that it can be milled into an R-shaped edge.

Scraping Unit

The edge trimming knives on both sides of the board scrape off the wavy knife marks caused by the rotation on the edge banding, and the modified R angle is the same as the R angle after finishing, making the upper and lower parts of the board more smooth and tidy.

Buffing Unit

Through the two rotating cloth wheels, the processed panel is cleaned to make the end face of the edge banding more smooth and beautiful, and to keep the polishing wheel worn evenly.

Panel length	≥100mm
Panel width	≥80mm
Panel thickness	10-60mm
Tape width	13-63mm
Tape thickness	0.4-3.0mm

Feed rate	15-18-20m/min
Total power	10.7kw
Working	0.65mpa
Size	450010001700mm
Weight	1700kg

Applications

Automatic edge banding machine, meet various edge banding needs, the necessary machine for furniture, saving time, labor cost.

FAQ

What is the positioning of HH-505?

Entry-level industrial-grade CNC edge banding machine, cheap but less functional.Suitable for start-up companies

What is the difference between HH-505 and HH-505R

HH-505R has one more Corner rounding funtion than Model HH-505
