Top Industrial Edge Banding Machine for Woodworking Manufacturing

Edge banding occupies the finishing stage of the panel furniture production line. After panels are cut to size, drilled, and grooved upstream, they reach the edge bander, where exposed edges are sealed with tape, trimmed, and polished into a finished surface. This is the stage that determines the visible and tactile quality of the final product.

That position makes the industrial edge banding machine a decisive throughput constraint. A slow bander limits the output of the entire line, while uneven glue lines or imprecise corners force panels into rework. Rework consumes labor, extends lead times, and erodes margin. In a plant operating to fixed delivery commitments, the edge banding machine frequently defines the ceiling on daily capacity.

Edge quality also extends beyond the factory. A lifted tape edge, a visible glue line, or a chipped seal becomes a quality issue in the customer’s hands. The edge bander, therefore, governs two outcomes at once: delivery speed and finished-product quality.

HUAHUA has built its reputation on this stage of production. This article examines the two HUAHUA models that define the upper end of that range: the HH-796RK-Servo and the HH-406RP.

Trust HUAHUA: One of the Leading Manufacturers in the Edge Banding Machine Industry

An industrial edge banding machine is a multi-year capital commitment, so the manufacturer behind it matters as much as the specification sheet.

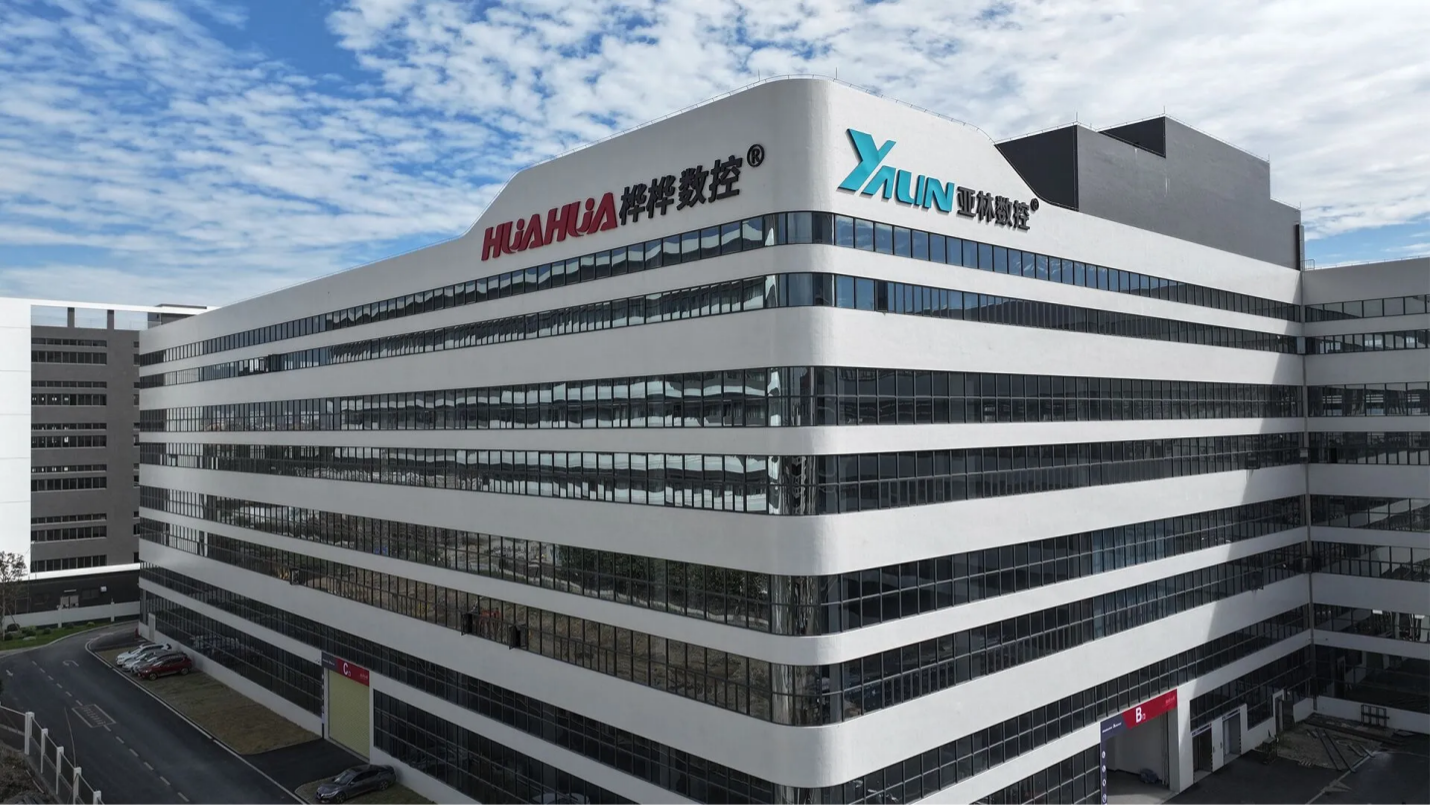

HUAHUA was founded in Foshan in 2003 and has specialized in CNC woodworking machinery ever since. At HUAHUA, we operate a 50,000 m² manufacturing facility and have supplied more than 1,0000+ clients across over 80 countries, including markets as varied as the United States, Russia, Italy, Saudi Arabia, and Southeast Asia. Our dedicated edge banding machine production line has been in operation since 2017, giving each model years of iterative refinement rather than first-generation guesswork.

Quality is certified, not merely claimed. HUAHUA’s factory holds ISO certification, and our machines carry the CE mark, so every automatic edge banding machine we build meets recognized international standards before shipment. A dedicated quality-control department inspects each edge bander before it leaves the line, and our machines run in panel furniture plants across more than 80 countries — evidence that our edge banding engineering holds up under continuous factory conditions, not only on a specification sheet.

Besides, we engineer the edge banding machines to slot directly into the panel furniture production line, receiving panels straight from cutting and drilling without extra handling, and we back every edge banding machine with installation, operator training, and overseas after-sales service. For a manufacturer weighing the best edge banding machines for woodworking, that combination of certification, line integration, and long-term support is the foundation of a confident purchase.

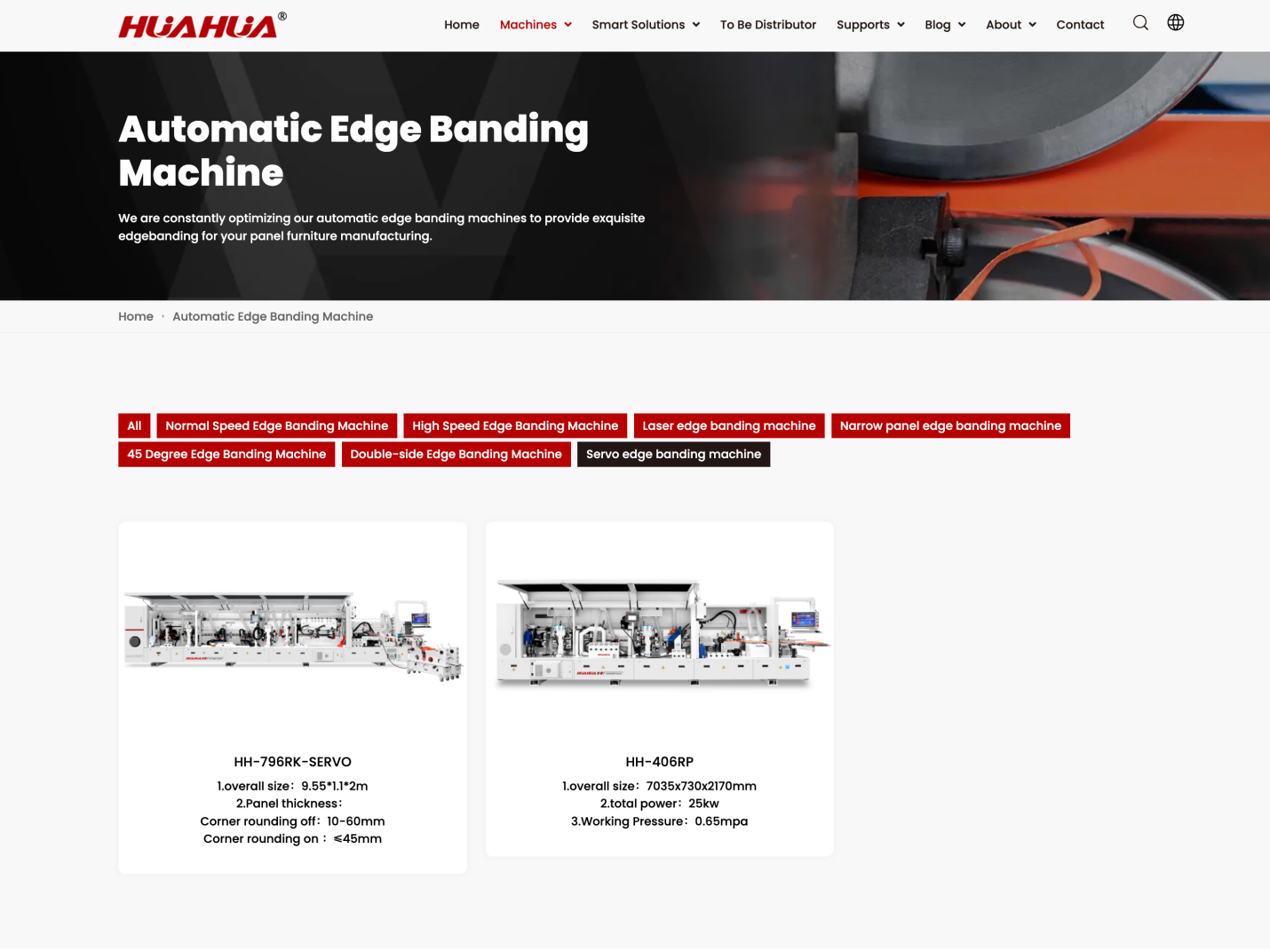

Top Industrial Edge Banding Machine: Specs at a Glance

Before the details, here is a side-by-side view. The table compares the two top industrial edge banding machine options so you can match each one to your own production reality.

Model	HH-796RK-Servo	HH-406RP
Best suited for	High-volume, premium-finish production	Cost-effective full-function banding
Conveying / Feed Speed	22–26–28 m/min	15–18–20 m/min
Panel Thickness	10–60 mm (≤45 mm with corner rounding)	10–60 mm
Panel Width	≥120 mm	≥95 mm
Tape Width	13–63 mm
Tape Thickness	0.4–3.0 mm
Glue System	No-clean glue pot + 2 kg PUR glue machine	Clean-free glue pot + 2 kg EVA glue machine
Corner Rounding	Double-head magnetic levitation	Dual-positioning corner rounding
Fine Trimming	Servo multi-blade, R1/R1.5/R2 switchable	Servo multi-radius fine trimming
Working Pressure	0.65 MPa	0.65 MPa
Machine Size	9.55 × 1.1 × 2 m	7035 × 730 × 2170 mm
Certification	CE

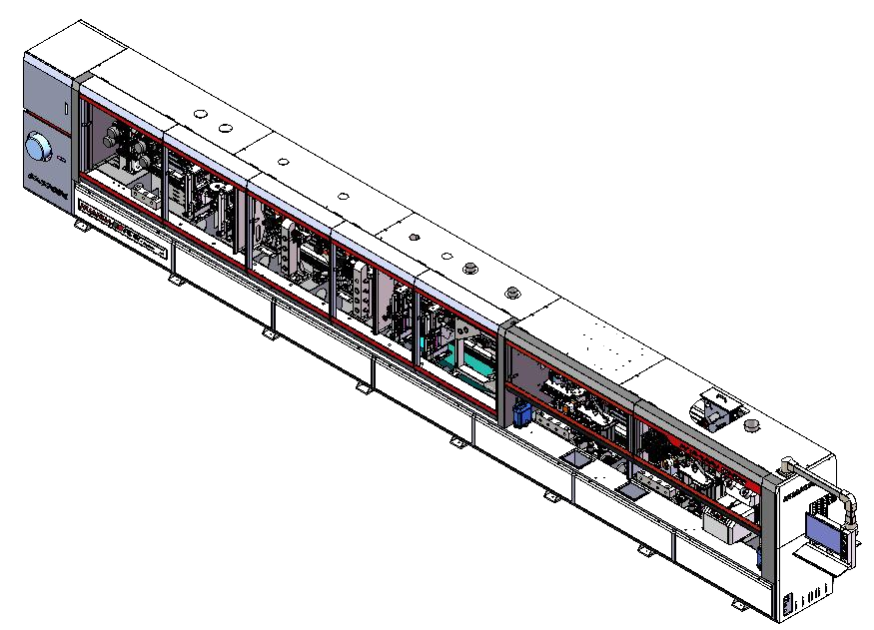

HH-796RK-Servo: The High-Speed Servo Flagship

The HH-796RK-Servo is HUAHUA’s premium industrial edge banding machine, built for plants where the edge bander must never be the slowest station on the floor. It conveys panels at 22 to 28 m/min and handles boards from 10 to 60 mm thick — up to 45 mm with corner rounding engaged — using tape 13 to 63 mm wide and 0.4 to 3.0 mm thick. At 9.55 meters long, it is a substantial machine, and that length is deliberate: every station is given the room to do one job precisely.

Here is how it performs, station by station:

Full Servo Control

On many edge banding machines, changing panel thickness, tape size, or trim radius means stopping the line and adjusting by hand. The HH-796RK-Servo replaces that manual work with servo motors on the guide plate, the four-channel tape feeder, the pressing belt and large pressing wheel, the fine trimming, and the scraping units. Two benefits follow:

• Changeovers happen at the screen in seconds rather than minutes, so short runs of mixed panels stay profitable.
• And because a servo returns to the same position every cycle, the hundred-thousandth panel is cut to the same tolerance as the first.

That repeatability — not raw speed alone — is what defines a true industrial edge banding machine.

Four-Channel Servo Glue System (PUR)

The glue station combines a four-channel servo tape feeder, a no-clean glue pot, and a 2 kg PUR glue machine. PUR is the reason this machine reaches a premium finish: it cures into a bond that resists heat, moisture, and steam, and it leaves a glue line so fine it is effectively invisible — the detail export buyers inspect first. The no-clean pot is the practical complement. A conventional glue pot must be emptied and scrubbed regularly, costing downtime and an operator’s time each cycle; the no-clean design keeps the machine running and the glue line consistent shift after shift.

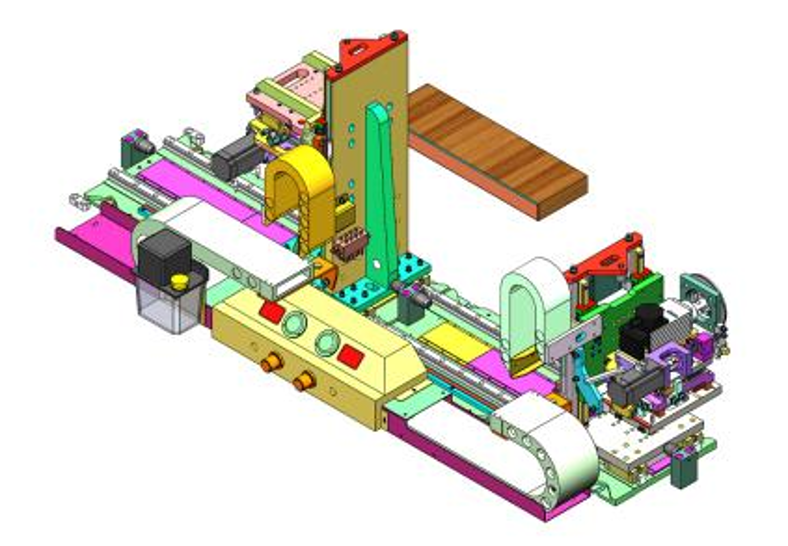

Double-Head Magnetic Levitation Corner Rounding

The corner is where a weak edge fails first — where tape lifts and chips. This unit mills all four corners into a clean radius arc and tracks panels up to 45 mm thick. The double-head magnetic levitation design suspends the cutting head with almost no mechanical friction, so it follows the panel profile smoothly at full conveying speed. The result is a corner that stays crisp at volume rather than one that degrades as bearings wear. This is a clear step above the mechanical corner-rounding units found on mid-range machines.

Servo Multi-Blade Fine Trimming

Fine trimming is the cut a customer runs a thumb along, so it has to be flawless and adjustable. A 400 W motor on an HSK25 locking knife shaft, driven by dual servos, switches freely between R1, R1.5, and R2 radius profiles. In practice one machine can run a softer rounded edge for one product and a tighter radius for the next with no tool change and no tooling kit — the flexibility a contract manufacturer needs when every order is different.

Front Releasing & Rear Cleaning

These two stations bracket the banding process and protect the panel face. Before banding, a releasing agent is sprayed so stray glue cannot adhere to the surface. After banding, a cleaning agent lifts residue away. The payoff is panels that reach assembly clean, with no manual wiping stage and no glue spots to sand out — a quiet saving that compounds across thousands of boards.

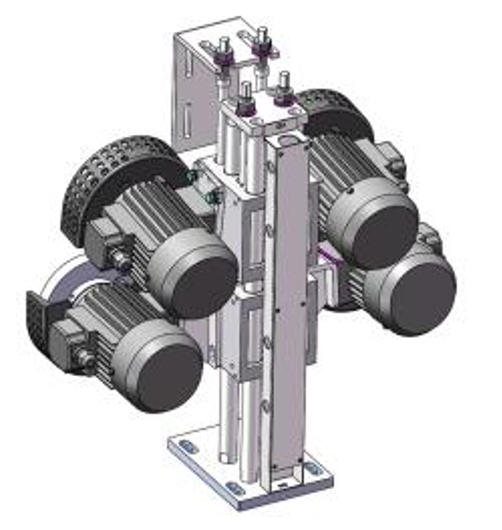

Double Buffing & Motor Protection

Two buffing units, mounted on an independent beam-and-column base for stability, polish the sealed edge to a smooth, uniform finish. Just as important is what protects them: an off-cut chip system clears trimming debris before it can reach the buffing and conveyor motors. Debris working into a motor is a common cause of premature failure on hard-run edge banders, so keeping it out directly extends service life and lengthens the interval between repairs.

The Verdict The HH-796RK-Servo earns its flagship position. The full-servo architecture and PUR glue line place it in the same finish class as European machines, while the magnetic levitation corner rounding and protected motors are built for the punishment of a three-shift plant. It is not the right machine for a small shop running a few panels a day — it asks for floor space and volume to justify the investment. But for a manufacturer producing premium furniture at scale, it is the most capable automatic edge banding machine in our range. Full specifications? Please visit: https://www.HUAHUAcnc.com/product-item/hh-796rk-serv/

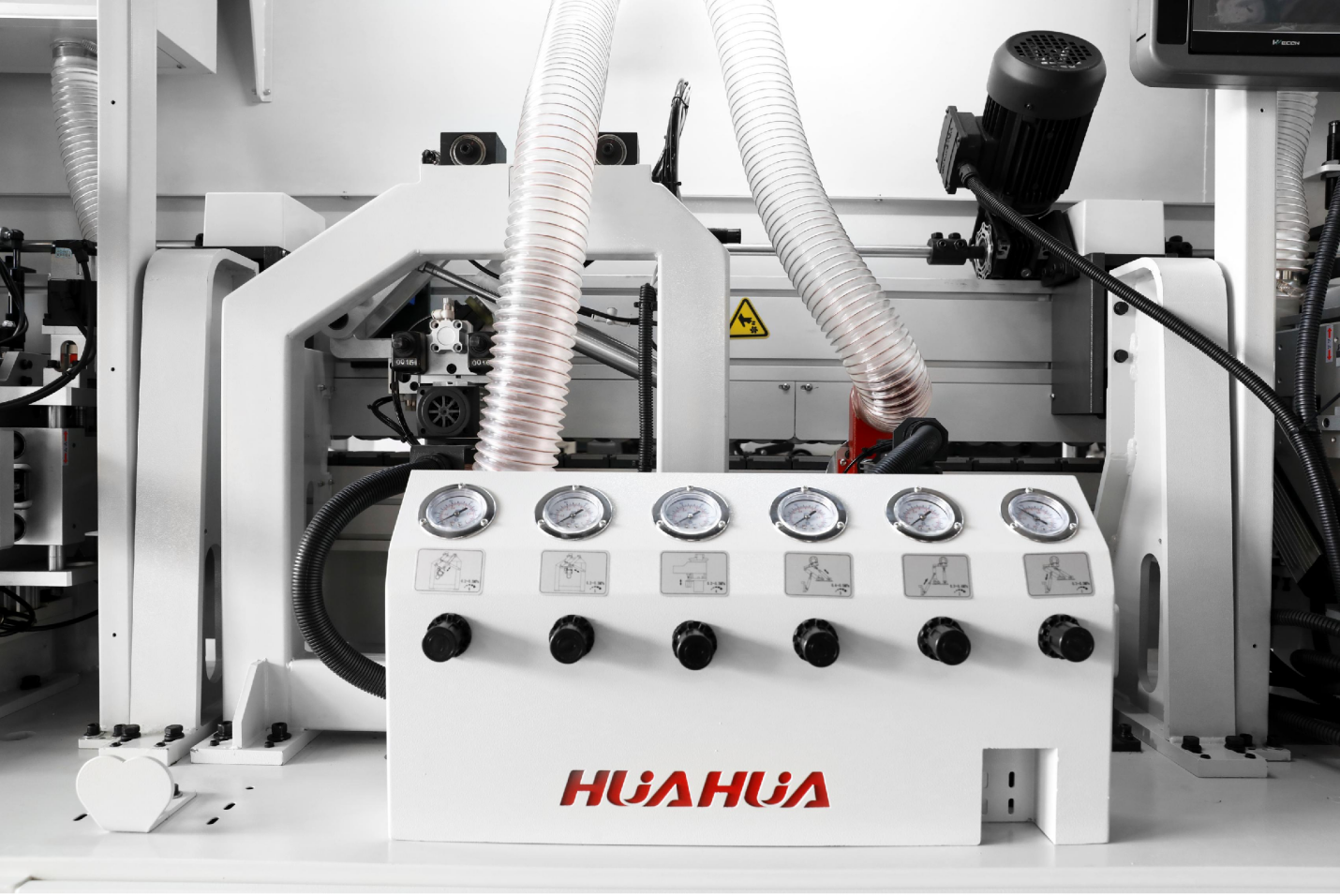

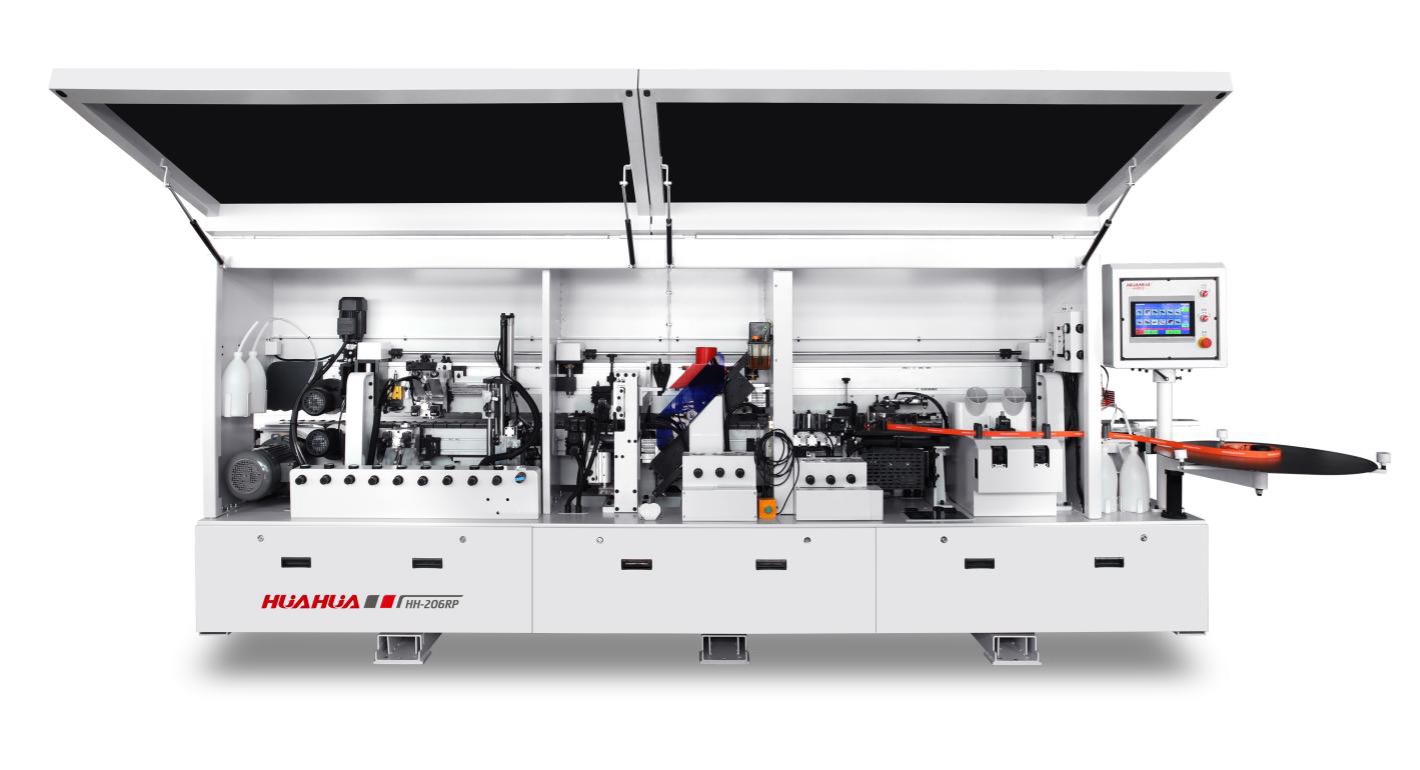

HH-406RP: The Full-Function Workhorse

The HH-406RP answers a different question: how capable a machine can a growing plant get without paying for the flagship? The answer is most of it. The HH-406RP is a complete industrial edge banding machine that feeds at 15 to 20 m/min, draws 25 kW, and handles panels 10 to 60 mm thick with tape 13 to 63 mm wide — yet packs into a 7035 × 730 × 2170 mm frame that fits a workshop the flagship would crowd. The phrase to retire here is “entry level”: every core station is present, and several are built to a standard above the price.

7 kW Pre-Milling

Banding quality is decided before any tape touches the panel. A saw-cut edge carries fine waves and burrs, and tape bonded to that surface shows every flaw in the glue line. The HH-406RP’s 7 kW pre-milling unit shaves the edge true and flat first, while a spiral dust-collection design pulls the chips away cleanly. It handles edges up to 40 mm tall as standard, or 65 mm as an option. This is the same principle the flagship relies on, and it is why the finished bond looks tight rather than rippled.

Heating Lamp

When hot-melt glue meets a cold panel edge, the temperature gap can crack the bond as it sets. The heating lamp preheats the edge, so the glue and board are closer in temperature at the moment of contact. It is a small station that prevents a specific, recurring defect — hairline cracking along the seam — that often appears only after a panel has shipped.

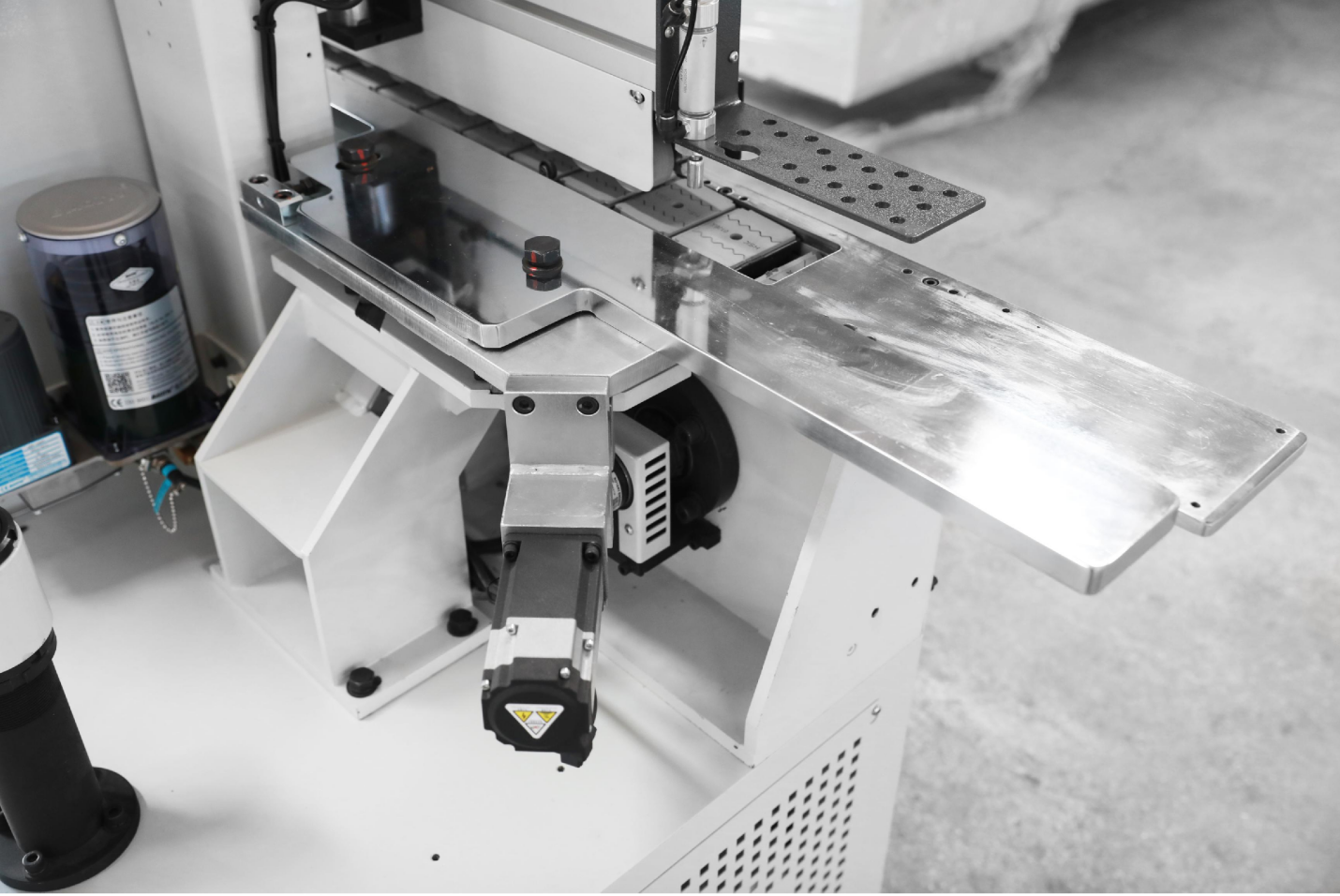

Servo Positioning Plate

Accuracy starts with where the panel sits as it enters the machine. A high-precision servo motor sets the positioning plate, holding every board to the same reference line. Machines that rely on mechanical stops drift out of position as parts wear; the servo plate holds true, so banding stays accurate from the first board of the shift to the last. It is flagship-grade servo control carried directly into this model.

Strong Servo Pressing

Pressing is what turns glued tape into a permanent, gap-free bond. The HH-406RP uses four pressing wheels enlarged to 150 mm diameter, plus a rubber wheel. The larger wheels spread contact across more of the tape and apply steadier force, while the rubber wheel conforms to the surface for a tighter fit at the edges. Weak pressing is the root cause of tape that peels months later, and this station is engineered specifically to prevent it.

Clean-Free EVA Glue Pot

The double-color, clean-free glue pot runs standard EVA — proven, economical, and correct for the cabinetry and standard furniture this machine targets. Its real advantage is the clean-free design: where an ordinary pot demands regular emptying and scrubbing, this one does not, removing a recurring block of downtime and freeing the operator for productive work. For a plant counting cost per panel, that is money saved every day.

Corner Rounding, Fine Trimming & Scraping

The finishing train does the visible work. Dual-positioning corner rounding, driven by four 3 kW motors, mills the four corners into neat R arcs. Servo multi-radius fine trimming then shapes the tape along the top and bottom edges, and floating flat scraping removes the last of the squeezed-out glue before it can stick to the buffing wheel. Each station is independently mounted and lifts on its own, which stops the panel from shaking between operations — the detail that keeps the finished edge even rather than wavy.

The Verdict The HH-406RP is the workhorse its name promises. It will not match the flagship’s PUR finish or top speed, and it is not built to. What it offers is a genuinely complete automatic edge banding machine — true pre-milling, servo positioning, strong pressing, full finishing — at a price and footprint a growing workshop can absorb, backed by reliability features such as automatic lubrication, long-life tracking motors, and independent station lifting that keep it running. For most cabinet and standard-furniture makers, it is the edge banding machine for wood that covers everything they need without the cost of capacity they will not use. Want to know more about HH-406RP? Just contact us: https://www.HUAHUAcnc.com/contact-us/

How to Decide Your Investment in an Industrial Automatic Edge Banding Machine?

Choosing between these two edge banding machines comes down to four questions about your own plant:

• First, what is your daily volume? If your line runs long shifts and high panel counts, the HH-796RK-Servo’s 28 m/min speed pays for itself in saved hours. If your volume is steady but moderate, the HH-406RP keeps pace at a lower cost per shift.
• Second, what finish does your market demand? Premium and export furniture usually require PUR glue and an invisible glue line, which points to the HH-796RK-Servo. For standard cabinetry and budget-conscious orders, the HH-406RP’s EVA system is proven, clean, and cost-effective.
• Third, what is your floor space? The HH-406RP’s compact frame suits smaller workshops, while the HH-796RK-Servo needs more room but rewards it with throughput. An honest measurement of your floor today prevents an expensive surprise on installation day.
• Fourth, where is your business heading? An industrial edge banding machine is a multi-year asset. Buying slightly ahead of today’s demand protects you from a second purchase the moment orders grow.

One factor stays constant across both models: support. HUAHUA backs every automatic edge banding machine with installation, operator training, and after-sales service, and both units integrate into a wider smart production line. Among the best edge banding machines for woodworking, the right one is simply the model that matches your volume, your finish, and your growth plan.

Conclusion

A finished edge is the first thing a buyer judges and the last thing they forget. It signals quality before a single drawer is opened. That is why the edge banding machine is where your manufacturing reputation is sealed, panel after panel.

The HH-796RK-Servo and the HH-406RP give woodworking manufacturers two clear paths to that reputation: one built for premium speed, one built for dependable value. Match the machine to where your plant is going, not only where it stands today, and the right edge banding machine for wood will keep working for your brand long after the purchase is made.

Contact HUAHUA today to get more information on edge banding technology!
